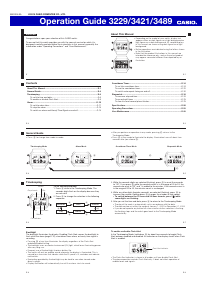

Operation Guide 3229/3421/3489

E-9

To enable or disable Flash Alert

In the Timekeeping Mode, hold down B for about two seconds to toggle Flash

Alert between enabled and disabled. An indicator on the display shows when Flash

Alert is enabled.

Flash Alert indicator

x The Flash Alert indicator is shown in all modes until you disable Flash Alert.

x The above operation controls Flash Alert only. It does not affect operation of

audible tones and signals.

E-8

Backlight

The backlight illuminates the display. Enabling Flash Alert causes the backlight to

flash while the alarm (page E-10), countdown timer alarm, or hourly time signal is

sounding.

x Pressing D at any time illuminates the display regardless of the Flash Alert

enabled/disabled setting.

x The backlight uses an electro-luminescent (EL) light, which loses illuminating power

after very long use.

x Frequent use of the backlight shortens battery life.

x The watch will emit an audible sound whenever the display is illuminated. This is

caused by a transistor that vibrates while the EL panel is lit, and does not indicate

malfunction.

x Illumination provided by the backlight may be hard to see when viewed under

direct sunlight.

x Display illumination will automatically turn off if an alarm starts to sound.

E-7

3. While the seconds digits are selected (flashing), press B to reset the seconds

to “00”. If you press B while the seconds count is in the range of 30 to 59, the

seconds are reset to “00” and 1 is added to the minutes. If the seconds count is

in the range of 00 to 29, the minutes count is unchanged.

4. While any other digits (besides seconds) are selected (flashing), press B to

increase the number. Holding down B changes the number at high speed.

x To switch between the 12-hour and 24-hour formats, press D

D

while

some digits are flashing.

5. After you set the time and date, press A to return to the Timekeeping Mode.

x The day of the week is automatically set in accordance with the date.

x The date can be set within the range of January 1, 2000 to December 31, 2099.

x If you do not operate any button for a few minutes while a selection is flashing,

the flashing stops and the watch goes back to the Timekeeping Mode

automatically.

E-6

Timekeeping

To set the time and date

1. Press A while in the Timekeeping Mode. The

seconds digits flash on the display because they

are selected.

2. Press C to change the selection in the following

sequence.

Minutes

HourSeconds

Month

Day

C

C

CC

C

Year

C

Minutes

Day of week

Month

Day

PM indicator

Hour Seconds

E-5

C

Stopwatch Mode Countdown Timer Mode

C

x After you perform an operation in any mode, pressing C returns to the

Timekeeping Mode.

x Press D in any mode to illuminate the display. Illumination turns off about two

seconds after you release D.

E-4

General Guide

x Press C to change from mode to mode.

Timekeeping Mode Alarm Mode

CC

E-3

Countdown Timer............................................................................................. E-14

To set the countdown time ........................................................................... E-14

To use the countdown timer ......................................................................... E-15

To switch auto repeat timing on and off ....................................................... E-16

Stopwatch ......................................................................................................... E-18

To measure elapsed time.............................................................................. E-18

To record split times .................................................................................... E-19

To time first and second place finishes......................................................... E-19

Specifications ................................................................................................... E-20

Operating Precautions ..................................................................................... E-22

User Maintenance ............................................................................................ E-32

E-2

Contents

About This Manual ............................................................................................. E-1

General Guide ..................................................................................................... E-4

Timekeeping ....................................................................................................... E-6

To set the time and date ................................................................................. E-6

To enable or disable Flash Alert...................................................................... E-9

Alarm ................................................................................................................. E-10

To set the alarm time .................................................................................... E-11

To stop the alarm ......................................................................................... E-13

To switch an alarm and Hourly Time Signal on and off ................................. E-13

E-1

About This Manual

x Depending on the model of your watch, display text

appears either as dark figures on a light background or

light figures on a dark background. All sample displays

in this manual are shown using dark figures on a light

background.

x Button operations are indicated using the letters shown

in the illustration.

x Note that the product illustrations in this manual are

intended for reference only, and so the actual product

may appear somewhat different than depicted by an

illustration.

E

ENGLISH

Congratulations upon your selection of this CASIO watch.

To ensure that this watch provides you with the years of service for which it is

designed, carefully read and follow the instructions in this manual, especially the

information under “Operating Precautions” and “User Maintenance”.

MA2003-EA

Ú

#!3)/#/-054%2#/,4$
