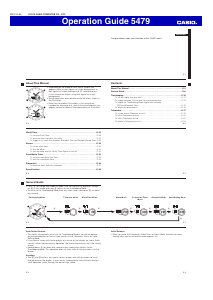

Operation Guide 5479

E-19

(space)

A to Z

@

to —

0 to 9

DDD

B

D

BBB

x You can input spaces, alpha characters, symbols, and numbers in a name. For

details, see the “Character List” at the back of this manual.

4. When the character you want is at the cursor position, press C to move the

cursor to the right.

5. Repeat steps 3 and 4 until the name is complete.

x You can input up to eight characters for the name.

6. After you input the name, press C as many times as

necessary to move the cursor to the number fi eld.

x You tell when you are in the name fi

eld because of

the long cursor (

—

). The number fi

eld has a short

cursor (

–

).

E-18

To create a new Telememo record

1. In the Telememo Mode, press B and D at the same

time to display the new data screen.

x The new data screen shows ———, which indicates

that there is no text in the name fi eld.

x If the new data screen does not appear, it means that

memory is full. To store another record, you will fi

rst

have to delete some of the records stored in memory.

2. Hold down A until the fl ashing cursor (

—

) appears

in the name fi eld of the display, which indicates the

setting screen.

3. Use D and B to change the character at the cursor

position in the name fi eld. The character changes in

the following sequence.

New Data Screen

E-17

Telememo

Telememo lets you store up to 30records, each

containing name and telephone number data. Records

are automatically sorted based on the characters of the

name. You can recall records by scrolling through them

on the display.

x A Telememo Mode record has a name fi eld and a

number fi

eld.

x See “Character List” at the back of this manual for

details on how the watch sorts records.

x All of the operations in this section are performed in

the Telememo Mode, which you enter by pressing C

(page E-6).

Name

Remaining memory

Record number

Number

E-16

To adjust the analog time

1. In the Timekeeping Mode, press C six times to enter

the Hand Setting Mode (page E-7).

2. Hold down A until the current digital time starts to

fl ash, which indicates the analog setting screen.

3. Press D to advance the analog time setting by

20seconds.

x Holding down D advances the analog time setting

at high speed.

x If you need to advance the analog time a long way, press D and

B at the

same time. This locks the high speed hand movement, so you can release the

two buttons. High-speed hand movement continues until you press any button.

It will also stop automatically after the time advances 12hours or if an alarm

(daily alarm, Hourly Time Signal, or countdown alarm) starts to sound.

4. Press A to exit the setting screen.

x To return to the Timekeeping Mode, press C.

E-15

To toggle the Timekeeping Mode digital time between DST and Standard Time

1. In the Timekeeping Mode, hold down A until the

seconds start to fl ash, which indicates the setting

screen.

2. Press C once to display the DST setting screen.

3. Press D to toggle between Daylight Saving Time

(ONdisplayed) and Standard Time (OFF displayed).

4. Press A to exit the setting screen.

x The DST indicator appears on the Timekeeping,

Alarm, and Hand Setting Mode to indicate that

Daylight Saving Time is turned on.

Setting the Analog Time

Perform the procedure below when the time indicated by the analog hands does

not match the time of the digital display.

E-14

To toggle between 12-hour and 24-hour timekeeping

In the Timekeeping Mode, press D to toggle between 12-hour timekeeping

(indicated by A or P on the display), or 24-hour timekeeping.

x With the 12-hour format, the P (PM) indicator appears on the display for times in

the range of noon to 11:59 p.m. and the A (AM) indicator appears for times in the

range of midnight to 11:59 a.m.

x With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without

any indicator.

x The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is

applied in all modes.

Digital Time Daylight Saving Time (DST) Setting

Daylight Saving Time (summer time) advances the digital time setting by one hour

from Standard Time. Remember that not all countries or even local areas use

Daylight Saving Time.

E-13

4. Press A to exit the setting screen.

x Resetting the seconds only (without changing the hour, minute, or DST setting)

causes the analog minute hand setting to be adjusted automatically. If you

change the hour, minute, or DST setting, you should also use the procedure

under “To adjust the analog time” (page E-16) to adjust the analog hands

accordingly.

x See “Digital Time Daylight Saving Time (DST) Setting” (page E-14) for details about

the DST setting.

x Resetting the seconds to 00 while the current count is in the range of 30 to

59causes the minutes to be increased by 1. In the range of 00 to 29, the

seconds are reset to 00 without changing the minutes.

x The day of the week is automatically displayed in accordance with the date

(year, month, and day) settings.

x The year can be set in the range of 2000 to 2099.

x The watch’s built-in full automatic calendar makes allowances for different

month lengths and leap years. Once you set the date, there should be no reason

to change it except after you have the watch’s battery replaced.

E-12

3. When the setting you want to change is fl ashing, use B and D to change it as

described below.

Screen To do this: Do this:

Reset the seconds to 00.

Press D.

Toggle between Daylight Saving Time (ON)

and Standard Time (OFF).

Press D.

Change the hour or minute.

Use D (+) and B (–).

Change the year.

Change the month or day.

E-11

Digital Time and Date

Use the Timekeeping Mode to set and view a digital display of the current time and

date. When setting the digital time, you can also confi gure settings for summer time

(Daylight Saving time or DST).

To set the digital time and date

1. In the Timekeeping Mode, hold down A until the

seconds start to fl ash, which indicates the setting

screen.

2. Press C to move the fl ashing in the sequence shown

below to select the other settings.

C

C

Seconds

DST

Day

Hour

Month

Minutes

Year

C C C

CC

E-10

Timekeeping

This watch features separate digital and analog timekeeping. The procedures for

setting the digital time (page E-11) and analog time (page E-15) are different.

x In the Timekeeping Mode, press A to toggle the display between the date screen

and the time screen.

Seconds

Date Screen

Time Screen

A

Hour

Day of week

Month – Day

PM indicator

Hour : Minutes

Minutes
