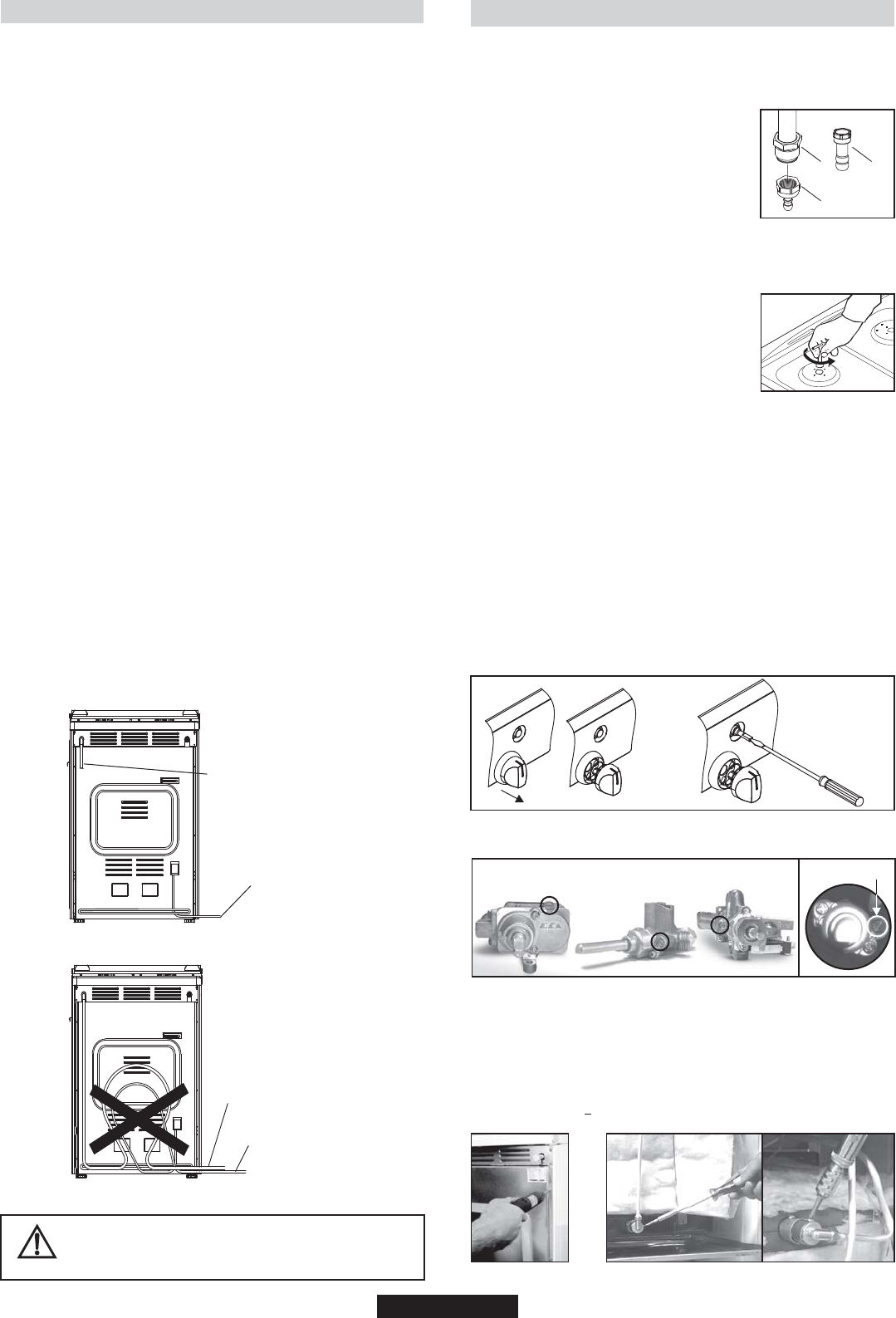

The gas must be connected to the appliance according to standard

and the provisions in force.

•When the appliance left the factory, it was regulated for the gas type

stated on the adhesive info label near the gas inlet at the back of the

appliance.

Make sure that you are using the gas stated on the label. If it is a

different type of gas, follow the instructions in the chapter on

conversion to different gas types'.

•Make sure that gas supply pressure is that given in the gas type

category table (Last 3 pages in this user manual) in order to achieve

maximum efficiency and lowest consumption. If the gas pressure is

different, a proper gas regulator should be used on the gas inlet. The

use of a gas regulator complying with the standards for LPG is

allowed.

Connection with a Solid or Flexible Metal Pipe

•The gas supply can be connected by a proper flexible stainless steel

pipe according to the safety standards in force. In this case, there will

be no further need to move the appliance. The gas inlet connector of

the appliance is Gc ½.

Connection with a Flexible Non-metallic Pipe

•If the gas connection is in a position where it can be switched on and

off when required, a flexible pipe complying with the standards in force

can be used. The flexible pipe must be firmly fixed with a clamp.

•The flexible pipe can be connected as follows:

•Since the flexible pipe will be placed behind the oven, it should be

exposed to temperatures no higher than 30ºC at any point.

•The length should be no longer than 150 cm.

•It must not be exposed to steam.

•No folding, bending or tension is allowed.

•It should be protected against sharp or piercing objects.

•It must be accessible in order to allow for periodic inspection.

•The flexible pipe must be checked as follows to guard against wear

over time:

•Check that there are no cracks, cuts or burned spots on or at the ends

of the pipe.

•The material must maintain its flexibility . Excessive rigidity is not

allowed.

•There must be no rust on the clamps.

•It should be replaced in any case after no more than 5 years' usage.

Check all connections for leaks with a soapy substance

after the installation is completed. Do not use a flame

for to check gas leaks.

RIGHT

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE

WRONG

FLEXIBLE GAS PIPE LINE

ELECTRICAL CABLE

2.7. GAS CONNECTION

For the cookers below written adjustment have to be done by qualified

technician.

Follow the steps given below to convert the appliance from the factory

set up to that for a different gas type.

Cookers are adjusted NG and connection type

is cylindric (1). For hose type NG connection,

hose adapter (2) can be fixed to cylindrical

adapter with seal.

For LPG connection, LPG hose adapter (3) can

be fixed to cylindric adapter with seal.

Adjustments and changing injectors

Changing Injectors

•Remove grates.

•Remove burner caps and burners.

•Remove injectors by using a 7 mm wrench, then screw on the correct

injector selected from gas type category table

(last 3 pages in this user manual) according to

the gas to be used.

•Follow the above steps in the reverse order

after completing the assembly of the new

injector.

Stand by Adjustment

Stand by adjustment for the cookers

without safety devices and with safety devices and button

ingition

•Turn the burner control knob to the small flame position and remove

the knob.

•If conversion from natural gas to LPG is required, turn clockwise the

by-pass screw of the gas valves with a screw driver to their final

position.

•If conversion from LPG to natural gas is required, turn anti-clockwise

the by-pass screw of the gas valves with a screw driver till a smaller

flame of ¼ size is obtained.

•After completing the adjustment, insert the knobs again.

•Check the adjustment by turning the burner control knob quickly from

maximum to minimum position. If the flame does not go out, it means

that the adjustment is correct.

•For safety devices, idle flame setting can be done with screw on valve

body. If there is ignition on the knob for idle flame setting cooktop,

toplid and panel must be removed.

2

3

2.8. CONVERSION FOR DIFFERENT GAS TYPES

1

By-pass screw for the burner

without safety

devices

Gas Oven

•Remove rear cover ( Figure3)

•Remove injector adapter.(Figure 4)

•Remove injectors by using a 7 mm wrench, then screw on the correct

injector selected from gas type category table (last 3 pages in this

user manual) according to the gas to be used. (Figure 5)

•Follow the above steps in the reverse order after completing the

assembly of the new injector.

•Burner Gap is 4.5 + 0.3 mm for NG and LPG (Figure 6)

Figure3 Figure4

safety devices

•For thermostat valve idle frame setting cooktop, top lid and panel

must be removed.

08 GB
