INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your Trophy Cam, you will first need

to install a set of batteries and insert an SD card. Although that may only take

you a minute, there are some important notes about both batteries and SD

cards you should be aware of, so please take the time to read the following

directions and cautions:

Loading Batteries

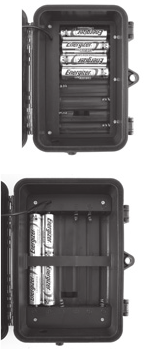

After opening the two latches on the right side of the

Trophy Cam, you will see that the Trophy Cam has

eight or twelve battery slots, depending on your model.

For maximum battery life, you should install a full set

of batteries. The Trophy Cam may also be operated

by just four batteries installed in the first slots only

(starting on the top or left-see photos). Battery life will

be shorter with 4 batteries, but the camera will operate

normally. Whether you use 4 or a full set, be sure

to insert each battery with correct polarity (negative

or “flat” end against the long spring of each battery

slot).

Bushnell recommends using a full set of new lithium

AA (Energizer

®

brand) or alkaline AA batteries. NiMh

Rechargeable batteries are not recommended, as the

lower voltage they produce can cause operational

issues. It is also possible to use a lead-acid external

battery cell with 6V output or suitable AC adapter-see

below for more details.

Using an External Power Source (optional, user provided)

Optionally, you can connect an external 6V DC power source to the “DC In”

jack at the bottom of the Trophy Cam. It is recommended to use a power

source with a current output greater than 1550mA. However, during bright

daytime operation when no flash is required, the Trophy Cam can function

with much less current ( >400mA). Please use a compatible power source

cable (not provided) to connect the external DC power source with the power

input jack of the Trophy Cam, making sure that the polarity is correct. Note:

The power connector is a 4.0x1.7mm coaxial DC power plug with positive

“tip” (inside pin) polarity (Radio Shack P/N 274-1532 or equivalent).
