Bruksanvisning Broan QP236BL Evolution 2 Köksfläkt

Bruksanvisning

MODELS QP230BC • QP230BL • QP230SS • QP230WW

QP236BC • QP236BL • QP236SS • QP236WW

QP242BC • QP242BL • QP242SS • QP242WW

Page 2

CLEANING & MAINTENANCE

For performance, appearance, and health reasons, clean filter,

fan and grease-laden surfaces. Use only a clean cloth and mild

detergent solution on stainless and painted surfaces.

Clean all-metal filters in the dishwasher using a non-phosphate

detergent. Discoloration of the filter may occur if using phosphate

detergents, or as a result of local water conditions - but this will

not affect filter performance. This discoloration is not covered by

the warranty.

Clean the non-duct recirculating filter surfaces frequently with

a damp cloth and a mild detergent. DO NOT immerse filters in

water or put in dishwasher. The special “Clean Sense” feature

indicates when the filter is to be replaced. The blue and yellow

strips will blend to green when it is time to change the filter. The

“Clean Sense” feature works best when facing toward the cook-

ing surface. Change the non-duct recirculating filters every 6

months. For replacement non-duct recirculating filters - purchase

S99010353 or Model BPPF30 for 30 wide hoods”, S99010354

or Model BPPF36 for 36” wide hoods, or S99010360 or Model

BPPF42 for 42” wide hoods.

The motor is permanently lubricated and never needs oiling. If

the motor bearings make excessive or unusual noise, replace

the motor

with the

exact service motor. The impeller should also

be replaced.

Use 120 V, 50 W, shielded halogen bulbs - MR16 with GU10 base.

OPERATION

Always turn the hood ON before cooking in order to establish an

air flow in the kitchen. After turning off the range, let the hood run

for a few minutes to clear the air.

Operate the hood as follows:

LIGHT (3 pushbutton switches)

Turns light on to LOW setting.

Turns light on to MEDIUM setting.

Turns light on to HIGH setting.

Pressing the same light button again will turn lights OFF.

A light above each button indicates light setting.

FAN (3 pushbutton switches)

Turns fan on to LOW speed.

Turns fan on to MEDIUM speed.

Turns fan on to HIGH speed.

Pressing the same fan button again will turn fan OFF.

A light above each button indicates fan speed.

NOTE

This hood utilizes an offset blower design to achieve greater

performance and lower sound levels. As a result, you may notice

that cooking impurities are more attracted to one side or appear

to be pulled-in faster than they appear on the opposite side. This

is completely normal. The hood has been designed and tested

to provide good capture of cooking impurities and odors under

all normal cooking conditions regardless of the cooking location

on the cooktop. Please note that cooking on the rear burners will

always result in the best capture of cooking impurities, regardless

of the hood design.

HEAT SENTRY SYSTEM

This range hood is equipped with an advanced Heat Sentry sys-

tem that monitors for excessive temperature and automatically

adjusts the fan to the appropriate setting.

1) If the fan is on, the Heat Sentry system will increase the fan

setting when the temperature is elevated. If the temperature con-

tinues to rise, the Heat Sentry system will continue to increase

the fan setting until the temperature is stabilized or reduced. The

flashing light above the fan button shows the Heat Sentry system

fan setting. Once the temperature has reduced, the Heat Sentry

system will change the fan to the original setting.

2) If the fan is off, the Heat Sentry system will automatically turn

the fan on to its highest speed when the temperature is above

normal. When the Heat Sentry system is on, the light above the

high speed fan button will flash on and off. After the temperature

has lowered to normal, the fan speed will be reduced until the

temperature has stabilized, then the fan will turn off.

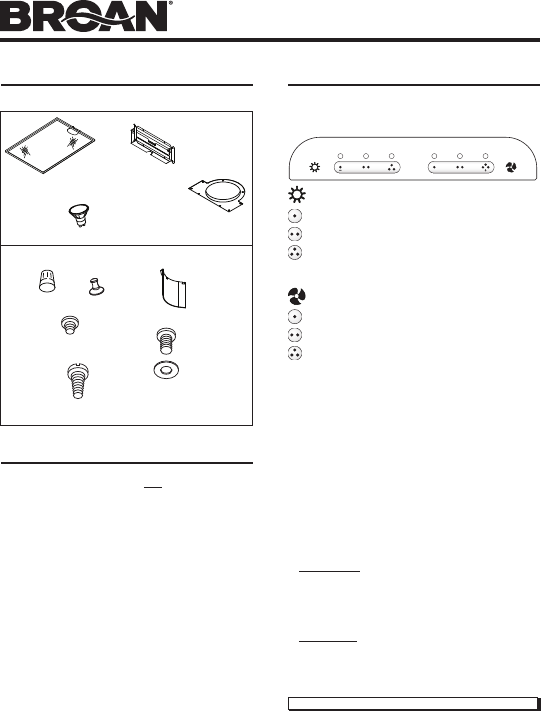

CONTENTS

GREASE

FILTERS

(2 - FOR 30” & 36” HOODS)

3 - FOR 42” HOODS)

(1) 3¼” X 10”

DAMPER / DUCT

CONNECTOR

(1) 7” ROUND

DUCT

CONNECTOR

(4)

HALOGEN

BULBS

(1)

BULB

SUCTION

CUP TOOL

(1) PARTS BAG CONTAINING:

(3)

WIRE

NUTS

(1)

NON-DUCT

DIVERTER

INCLUDED WITH THE HOOD:

(9)

#8 X 1/4”

DUCT

CONNECTOR

SCREWS

(5)

#10 X 5/8”

RD. HD.

MOUNTING

SCREWS

(2)

#8 X 5/16”

MACHINE

SCREWS

&

(2)

#8 WASHERS

FOR NON-DUCT

DIVERTER

Note: Canadian version does not have this function.
