10 | English

1 609 92A 3T4 | (3.4.17) Bosch Power Tools

Assembly

Mounting the Protective Devices

 Before any work on the machine itself, pull the mains

plug.

Note: After breakage of the grinding disc during operation or

damage to the holding fixtures on the protection guard/power

tool, the machine must promptly be sent to an after-sales ser-

vice agent for maintenance. For addresses, see section “Af-

ter-sales Service and Application Service”.

Protection Guard for Grinding

Place the protection guard 8 on the spindle collar. Adapt the

position of the protection guard 8 to the requirements of the

work step. Lock protection guard 8 by tightening locking

screw 9 with combination spanner 5/6.

 Adjust the protection guard 8 in such a manner that

sparking is prevented in the direction of the operator.

Note: The encoding keys on the protection guard 8 ensure

that only a protection guard that fits the machine type can be

mounted.

Protection Guard for Cutting

 For cutting with bonded abrasives, always use the pro-

tection guard for cutting 15.

 Provide for sufficient dust extraction when cutting

stone.

The protection guard for cutting 15 is mounted in the same

manner as the protection guard for grinding 8.

Auxiliary Handle

 Operate your machine only with the auxiliary handle 4.

Screw the auxiliary handle 4 on the right or left of the machine

head depending on the working method.

Hand Guard

 For operations with the rubber sanding plate 18 or with

the cup brush/wheel brush/flap disc, always mount the

hand guard 17.

The hand guard 17 is fastened with the auxiliary handle 4.

Mounting the Grinding Tools

 Before any work on the machine itself, pull the mains

plug.

 Do not touch grinding and cutting discs before they

have cooled down. The discs can become very hot while

working.

Clean the grinder spindle 7 and all parts to be mounted.

For clamping and loosening the grinding tools, lock the grind-

er spindle with the spindle lock button 1.

 Actuate the spindle lock button only when the grinder

spindle is at a standstill. Otherwise, the machine may be-

come damaged.

Grinding/Cutting Disc

Pay attention to the dimensions of the grinding tools. The

mounting hole diameter must fit the mounting flange without

play. Do not use reducers or adapters.

When using diamond cutting discs, pay attention that the di-

rection-of-rotation arrow on the diamond cutting disc and the

direction of rotation of the machine (see direction-of-rotation

arrow on the machine head) agree.

See graphics page for the mounting sequence.

To fasten the grinding/cutting disc, screw on the clamping nut

12 and tighten it with the combination spanner 5/6, (see sec-

tion “Quick-clamping Nut”).

 After mounting the grinding tool and before switching

on, check that the grinding tool is correctly mounted

and that it can turn freely. Make sure that the grinding

tool does not graze against the protection guard or oth-

er parts.

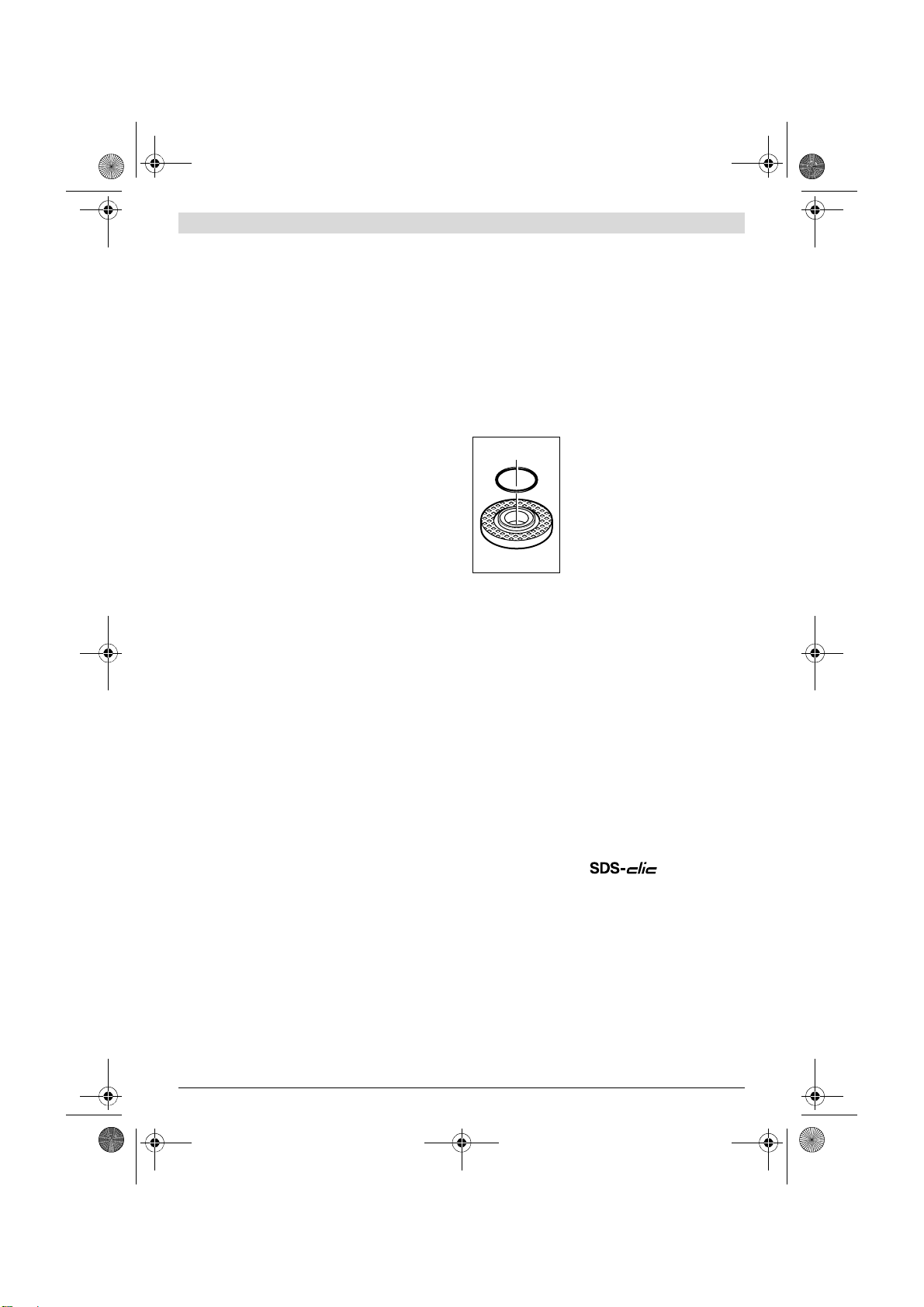

Mounting flange for grinding spindle

M 14: A plastic part (O-ring) is fitted

around the centring collar of mounting

flange 10. If the O-ring is missing or

damaged, the mounting flange 10

must be replaced before resuming op-

eration.

Mounting flange for grinding spindle

M 10: The mounting flange can be used

on both sides.

Flap Disc

 For operations with the flap disc, always mount the

hand guard 17.

Rubber Sanding Plate

 For operations with the rubber sanding plate 18, al-

ways mount the hand guard 17.

See graphics page for the mounting sequence.

Screw on round nut 20 and tighten it with the combination

spanner 5/6.

Cup Brush/Disc Brush

 For operations with the cup brush/wheel brush, always

mount the hand guard 17.

See graphics page for the mounting sequence.

The cup brush/disc brush must be able to be screwed onto

the grinder spindle until it rests firmly against the grinder

spindle flange at the end of the grinder spindle threads. Tight-

en the cup brush/disc brush with an open-end spanner.

Quick-clamping Nut

For convenient changing of grinding tools without the use of

additional tools, you can use the quick-clamping nut 13 in-

stead of the clamping nut 12.

 The quick-clamping nut 13 may be used only for grind-

ing or cutting discs.

Use only a flawless, undamaged quick-clamping nut 13.

When screwing on, pay attention that the side of the

quick-clamping nut 13 with printing does not face the

grinding disc; the arrow must point to the index mark 23.

OBJ_BUCH-2775-004.book Page 10 Monday, April 3, 2017 8:22 AM
