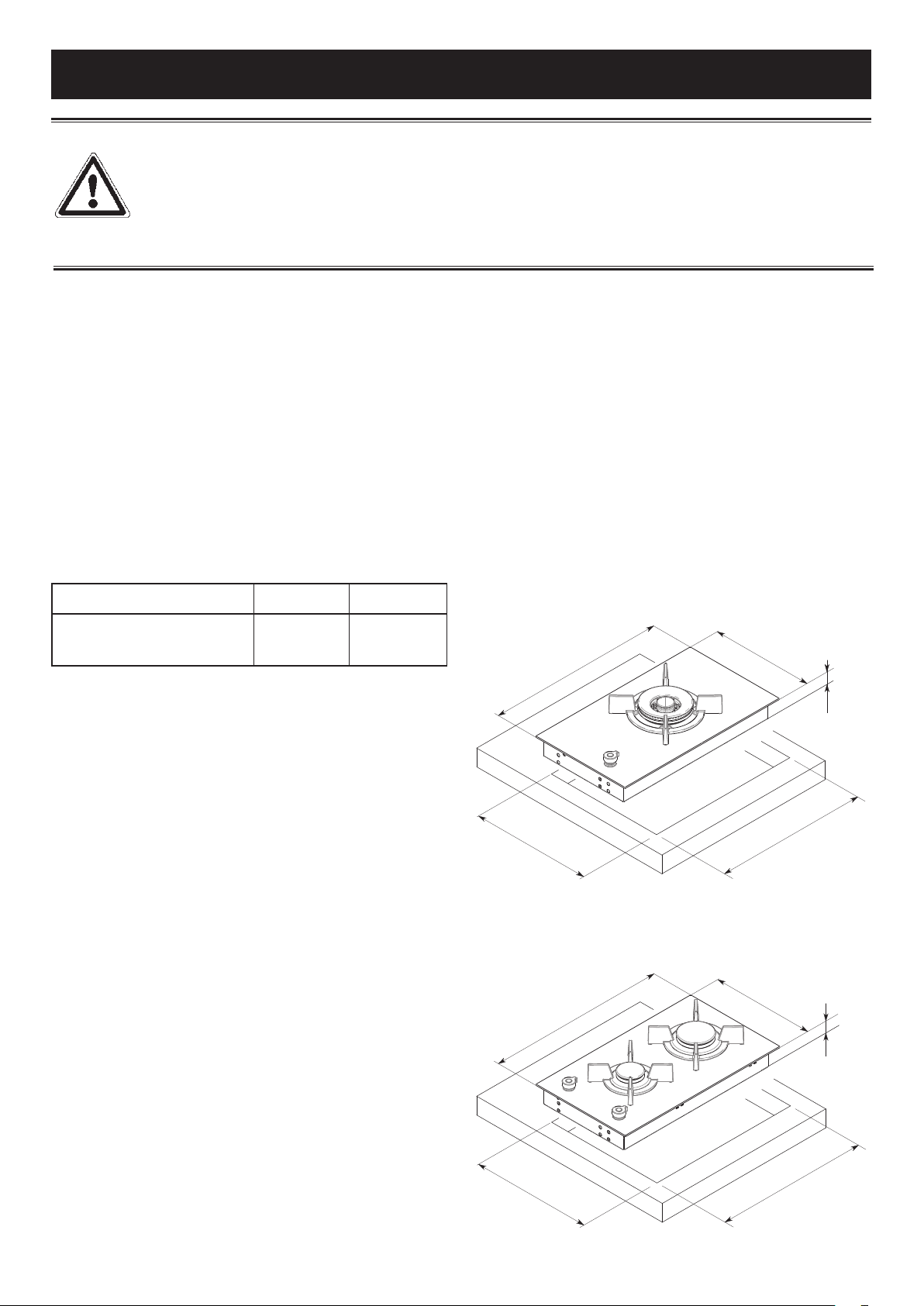

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE:

THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED

PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE.

THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO

PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH

SUCH PROVISIONS.

INSTALLATION

Installing the top

The appliance is designed to be embedded into

heat-resistant pieces of furniture.

The walls of the pieces of furniture must resist a

temperature of 75°C besides the room one.

The equipment must not be installed near

inflammable materials, such as curtains, cloths,etc.

Make a hole in the top of the piece of furniture,

with the dimensions indicated in fig.3, at a distance

of at least 50 mm from the appliance border to the

adjacent walls.

MODEL L (mm) P (mm)

300 X 520 280 490

Any possible wall unit over the cook-top must be

placed at a distance of at least 760 mm from the

top (fig.3).

It is advisable to isolate the appliance from the

piece of furniture below with a separator, leaving a

depression space of at least 10 mm (fig. 4).

If the hob is going to be installed on the top of an

oven, precautions must be taken to guarantee an

installation in accordance with current accident

prevention standards. Pay particular attention to

the position of the electric cable and gas pipe: they

must not touch any hot parts of the oven.

Moreover, if the hob is going to be installed on

the top of a built in oven without forced cooling

ventilation, proper air vents must be installed to

guarantee an adequate ventilation, with the lower

air entering with a cross section of at least 200cm

2

,

and the higher air exiting with a cross section of at

least 60 cm

2

.

Fastening the top

Every cook-top is equipped with a special washer.

A set of hooks is also supplied for mounting the

cook-top.

Depending on the type of mounting surface, the

suitable type of mounting hook is supplied (hook A

or hook B).

For the installation proceed as follows:

- Remove the racks and burners from the top.

- Turn the appliance upside down and lay the

washer S along the external border (fig.5).

- Introduce and place the cook-top in the hole made

in the piece of furniture, then block it with the

screws of the fastening hooks C (fig.6).

Installation room

This appliance is not provided with a device for

exhausting the products of combustion.

Regarding room ventilation rules where appliance

is installed make reference to the legislation, in

conformity with the local regulations.

520

490

280

300

55

520

490

280

300

55
