Bruksanvisning

EN

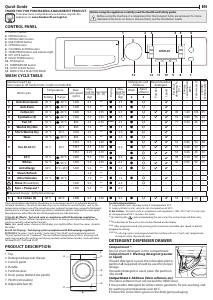

Quick Guide

CONTROL PANEL

1. ON/OFF button

2. DRYING button

3. DRYING ONLY button

4. MULTI RINSE button

5. OPTION button

6. CLEANING ACTION button

7. START/PAUSE button and indicator light

8. KEY LOCK button

9. DELAY TIMER button

10. SPIN button

11. TEMPERATURE button

12. AUTO CLEAN button

13. WASH CYCLE SELECTOR KNOB

WASH CYCLE TABLE

THANK YOU FOR PURCHASING A BAUKNECHT PRODUCT.

To receive more comprehensive assistance, register the

appliance on www.bauknecht.eu/register

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more

detailed instructions on how to remove them, see the Installation Guide.

13

7

8

9

10

11

12

1 2

4

DISPLAY

5 6

3

PRODUCT DESCRIPTION

1.

3.

2.

5.

4.

7.

6.

8.

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

DETERGENT DISPENSER DRAWER

Compartment *:

Do not insert detergent in this compartment.

Compartment 1: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic

partition A (supplied) should be used for proper

dosage.

If powder detergent is used, place the partition

into slot B.

Compartment 2: Additives (fabric softeners, etc.)

The fabric softener must not exceed the “MAX” level.

! Use powder detergent for white cotton garments, for pre-washing, and

for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

1

2

A

B

*

For all testing institutes:

2) Long cotton cycle: set programme 3 at temperature 40°C.

3) Long synthetics cycle: set cycle 4 at a temperature of 40°C.

4) Eco Cotton -

Test wash cycle in compliance with regulations 1061/2010. Set “3” wash cycle

at a temperature of 60°C to access this cycles.

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

** The duration of the wash cycles can be checked on the display.

*** After programme end and spinning with maximum selectable spin speed, in default

programme setting.

**** If a drying cycle is also programmed, the machine will run a “wash+dry” programme

lasting 45’ and a 1kg laundry load.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as the

temperature and pressure of the incoming water, ambient temperature, amount of detergent,

load quantity and type, load balancing and any additional options selected.The values given

for programmes other than the Eco 40-60 programme are indicative only.

1) Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation

2019/2014. The most ecient programme in terms of energy and water consumption for

washing normally soiled cotton laundry.

Note: spin speed values shown on the display can slightly diers from the values stated in

the table.

Eco 40-60 (Drying) -

Test drying cycle in compliance with EU Ecodesign regulation

2019/2014

. To access “wash and dry” cycle select “Eco 40-60” wash programme and set

“Drying” option level to

“

Cupboard

”.

The most ecient programme in terms of energy and

water consumption for washing and drying normally soiled cotton laundry. (Cycle duration:

full load 9h:20’ / half load 5h10’).

Maximum load 9 kg

Power input in o mode 0.5 W / in left-on mode 8 W

Detergents and

Additives

Recommended

detergent

Residual

dampness %

(***)

Energy

consumption

kWh

Total water lt

Laundry

temperature °C

Wash cycle

Temperature

Max.

spin speed

(rpm)

Max.

load for

washing

(kg)

Duration

(h : m)

Drying

Max.

load for

drying

(kg)

Wash

Fabric

softener

Powder

Liquid

Setting Range 2 3

1 Anti-Stain Quick 40 °C

- 40 °C

1200 4.5 **



4.5

 

–



– – – –

2 Anti-Stain 40 °C

- 40 °C

1400 9.0 **



6.0

 

–



– – – –

3 Cotton (2) 40 °C

- 60 °C

1400 9.0 3:55



6.0

   

49 1.40 105 45

4 Synthetics (3) 40 °C

- 60 °C

1200 4.0 2:55



4.0

   

35 0.80 55 43

5 Fast 30’ 30 °C

- 30 °C

800 4.5 0:30 **** 4.5

 

–



71 0.20 45 27

6 Wash & Dry Mix 40 °C 40 °C 800 3.5 **



3.5

 

–



– – – –

7 Shirts Wash & Dry 40 °C 40 °C 1000 2.0 **



2.0

 

–



– – – –

8 Wool 40 °C

- 40 °C

800 2.0 **



2.0

 

–



– – – –

9 Eco 40-60 (1) 40 °C 40°C

1351 9.0 3:40



6.0

   

53 0.86 54 38

1351 4.5 2:50

    

53 0.68 54 37

1351 2.25 2:10

    

53 0.46 40 34

10 20°C 20 °C

- 20 °C

1400 9.0 1:50



6.0

 

–



49 0.16 90 22

11 Whites 60 °C

- 90 °C

1400 9.0 2:45



6.0

   

49 0.90 90 55

12 Anti Allergy 60°C 40 °C - 60 °C 1400 5.0 **



5.0

   

– – – –

13 Steam Refresh – – – 2.0 ** – – – – – – – – – –

14 Ultra Delicates 30 °C

- 30 °C

– 1.0 **



1.0

 

–



– – – –

Rinse (Rinse&Spin) – – 1400 9.0 **



6.0 –



– – – – – –

Spin + Pump out * – – 1400 9.0 **



6.0 – – – – – – – –

 Required dosage  Optional dosage

3 Eco Cotton (4) 60 °C 60 °C 1400 9.0 3:40



6.0

   

53 1.17 60 –
