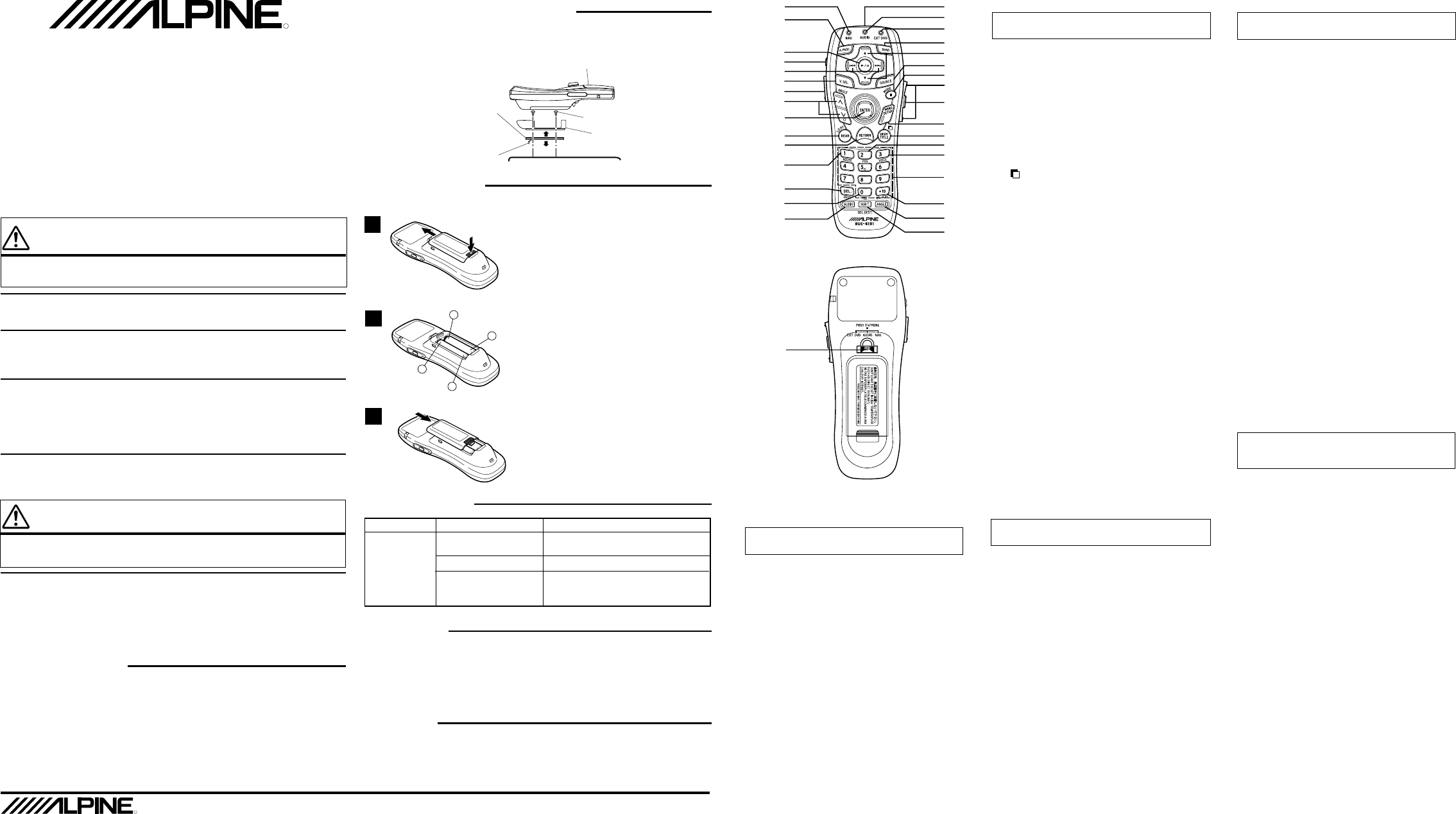

Bruksanvisning

RUE-4191

Universal Remote Controller

Owner's Manual

R

WARNING

This symbol means important instructions. Failure to heed them

can result in serious injury or death.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician

immediately.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM

SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after

coming to a complete stop. Always stop the vehicle in a safe location before

performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE

WHILE DRIVING.

Failure to do so may result in an accident.

CAUTION

This symbol means important instructions. Failure to heed them

can result in injury or material property damage.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT

BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as

instructed. Rupture or chemical leakage from the battery may cause fire or personal

injury.

Handling Precautions

Do not drop or apply shock to the unit. It may get permanently damaged.

Keep the unit away from water and moisture, direct sun and heat, and excessive dust.

Never use scouring pads, steel wool, abrasive powders or harsh chemical agents,

such as lye solution, for cleaning.

Clean with a soft, lint-free cloth or cotton swab slightly dampened with a mild solution

of detergent and water.

Do not operate this unit in a manner that could distract you from driving safely.

Map/Arrow type Navigation Control Mode

When operating the navigation, set the EXT DVD/

AUDIO/NAV. Switch to the “NAV.” side.

1 Remote Control Transmitter

2 —

3 —

4 —

5 —

6 —

7 MODE button

8 VOLUME UP/DOWN button

(When connected with the Ai-NET Head Unit)

9 MUTE button

(When connected with the Ai-NET Head Unit)

! MENU button

"

button (MAP Type only)

# POS. button

$ VOICE button

% Numeric Keypad

& OK/M.PT button

( —

) DEL. DEST. button

~ Status indicator for NAV. mode

+ —

, —

- Power ON/OFF button

. —

/ —

: LIGHT button for Remote Controller

; Zoom (Wide/Detail) button (Map Type only)

< Joystick/ENTER button

= LO.PT button

> RETURN button

? ROUTE button

@ DEL./DEST. button

[ TEL. button (Map Type only)

\ —

] EXT DVD/AUDIO/NAV. Switch

TV/MONI. button (Push)

Notes:

• Depending on the unit, some operations cannot be

performed. For details, see the Owner’s Manual for

the unit.

• After pressing the MODE button, press the following

buttons while the status indicator is blinking:

Numeric Keypad (0 to 9). DEL. button, OK button

AV Head Unit Control Mode

When operating the AV Head Unit, set the EXT

DVD/AUDIO/NAV. Switch to the “AUDIO” side.

1 Remote Control Transmitter

2 Status indicator for AUDIO mode

3 —

4 BAND button

5 Radio mode: Preset Selection

Changer mode: Disc Selection

6 SOURCE button

7 —

8 VOLUME UP/DOWN, Audio Adjust button

9 MUTE button

! —

" —

# —

$ —

% Function button (1 to 7)

& —

( —

) —

~ —

+ A.PROC. button

, Audio mode Selection (VOL./BASS/TRE/BAL/

FAD)

Press and hold for 2 seconds to LOUD ON/OFF

- Power ON/OFF button

. Radio mode: SEEK UP/DOWN

CD/MD/Changer mode: Music Sensor,

BW/FF (press and hold)

/ V.SEL. button

: LIGHT button for Remote Controller

; Display Angle UP/DOWN button

< —

= —

> —

? —

@ —

[ —

\ —

] EXT DVD/AUDIO/NAV. Switch

TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot

be performed. For details, see the Owner’s

Manual for the unit.

Head Unit Control Mode

When operating the Head Unit, set the EXT DVD/

AUDIO/NAV. Switch to the “AUDIO” side.

1 Remote Control Transmitter

2 Status indicator for AUDIO mode

3 —

4 BAND button

5 Radio mode: Preset Selection

Changer mode: Disc Selection

MP3 mode: Folder Select

Tape mode: Programme Sensor

6 SOURCE button

7 —

8 VOLUME UP/DOWN button

9 MUTE button

! —

" —

# —

$ —

% —

& —

( —

) —

~ —

+ A.PROC. button

, PLAY/PAUSE button

- Power ON/OFF button

. Radio mode: SEEK UP/DOWN

CD/MD/Changer mode: Music Sensor,

BW/FF (press and hold)

Tape mode: REW/FF

/ —

: LIGHT Button for Remote Controller

; Display Angle UP/DOWN button

< —

= —

> —

? —

@ —

[ —

\ —

] EXT DVD/AUDIO/NAV. Switch

TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot

be performed. For details, see the Owner’s

Manual for the unit.

DVD Player/DVD Changer

Control Mode

When operating the External DVD Player/DVD

Changer, set the EXT DVD/AUDIO/NAV. Switch to

the “EXT DVD” side.

1 Remote Control Transmitter

2 —

3 Status indicator for EXT DVD mode

4 —

5 DVD Changer mode: Disc Selection

6 Audio SOURCE button

(When connected with the Ai-NET Head Unit)

7 L (STOP) button

8 VOLUME UP/DOWN

(When connected with the Ai-NET Head Unit)

9 MUTE button (When connected with the

Ai-NET Head Unit)

! MENU button

Press and hold for 2 seconds to display the

setup menu.

" Searching by Title/Chapter/elapsed time

Press and hold for 2 seconds to display the DVD

menu/Title menu.

# —

$ —

% Numeric Keypad

& —

( ANGLE button

) SUB T. (Subtitle) button

Press and hold this for 2 seconds to turn the

subtitles ON and OFF.

~ —

+ A.PROC. button

(When connected with the Digital Audio Processor)

, Playback,

Press and hold for 2 seconds to playback the slow

motion.

- Power ON/OFF button

. Chapters and tracks skip

Press and hold for 2 seconds to BW/FF.

/ —

: LIGHT button for Remote Controller

; Display angle UP/DOWN button

(When connected with the Ai-NET Head Unit)

< Joystick/ENTER button

= —

> RETURN button

? —

@ —

[ —

\ AUDIO button

] EXT DVD/AUDIO/NAV. Switch

TV/MONI. button (Push)

Note: Depending on the unit, some operations cannot

be performed. For details, see the Owner’s

Manual for the unit.

TV/Monitor Control Mode

When controlling the Monitor, press the EXT DVD/

AUDIO/NAV. Switch to activate the TV/MONI. mode.

Check which TV Tuner or Monitor functions corre-

sponds to which buttons on the remote control and

attach the appropriate seal (supplied).

Note: Depending on the unit, some operations cannot

be performed. For details, see the Owner’s

Manual for the unit.

Installation of Remote Control Holder

• Do not leave the remote control mounted on the holder, if it is direct sunlight.

Remove the remote control from the holder and put it in the glove compartment.

• If double-sided adhesive tape cannot install the holder securely, use screws.

Battery Replacement

Applicable battery: Use two "AAA" sized dry batteries or equivalent.

Opening the battery cover.

Push on the cover and slide it as indicated by the

arrows then the cover will be removed.

Replacing the batteries.

Remove the old batteries. Insert new ones

matching the (+) and (–) polarities as shown in the

diagram inside the remote control.

Closing the cover.

Push the cover in the arrow direction until a click

is heard.

In Case of Difficulty

Specifications

Battery Type ....................................................................................... AAA size batteries

Battery Quantity ............................................................................................................ 2

Dimensions (W × H × D) ................................................................. 56 × 142.5 × 37 mm

(2-1/4" × 5-5/8" × 1-7/16")

Weight (without battery) ............................................................................. 72 gr (2.6 oz)

Accessories

Battery (AAA) ................................................................................................................ 2

Remote Control Holder ............................................................................................ 1 set

Double-Sided Adhesive Tape .................................................................................. 1 set

Screw ............................................................................................................................ 2

1

2

3

ALPINE ELECTRONICS, INC.

Tokyo office: 1-1-8 Nishi Gotanda,

Shinagawa-ku, Tokyo 141-8501, Japan

Tel.: (03) 3494-1101

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Tel.: (03) 9769-0000

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7, 40878 Ratingen, Germany

Tel.: 02102-45 50

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano Sul

Naviglio (MI), Italy

Tel.: 02-48 47 81

ALPINE ELECTRONICS FRANCE S.A.R.L.

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016 95945 Roissy

Charles de Gaulle Cedex, France

Tel.: 01-48 63 89 89

ALPINE ELECTRONICS OF U.K., LTD.

13 Tanners Drive, Blakelands,

Milton Keynes MK14 5BU, U.K.

Tel.: 01908-61 15 56

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón 32

01013 Vitoria (Alava)-APDO 133, Spain

Tel.: 945-283588

68P20877Y89-O

Printed in China (Y)

R

Protective Paper

Remote Control Holder

Double-Sided

Adhesive Tape

(Before attaching

the tape, make sure

the mounting

locations are free

from dust or dirt)

Console Box etc.

Reinforcing Screws

Remote Control

Problem

Remote Control

Inoperative.

Cause

Reverse placement of

battery.

Dead battery.

Remote Control not

pointed toward the head

unit or monitor.

Solution

Place the battery correctly into its cradle

in the compartment.

Replace the battery with a new one.

Point the remote control directly toward

your head unit or monitor.

−

+

+

−

]

1

2

3

4

5

.

:

6

7

9

!

8

"

$

%

&

,

-

/

;

<

=

>

?

@

#

[

(

)

\

~

+
