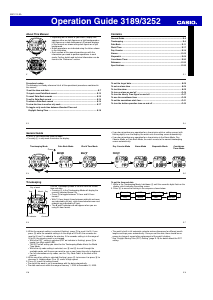

Operation Guide 3189/3252

E-2

Procedure Lookup

The following is a handy reference list of all the operational procedures contained in

this manual.

To set the time and date ......................................................................................... E-7

To input a new Data Bank record ........................................................................ E-12

To recall Data Bank records ................................................................................ E-15

To edit a Data Bank record .................................................................................. E-16

To delete a Data Bank record .............................................................................. E-16

To view the time in another city code ................................................................. E-17

To toggle a city code time between Standard Time and

Daylight Saving Time ........................................................................................ E-18

MA1012-EA

E

About This Manual

• Depending on the model of your watch, display text

appears either as dark figures on a light background or

light figures on a dark background. All sample displays

in this manual are shown using dark figures on a light

background.

• Button operations are indicated using the letters shown

in the illustration.

• Each section of this manual provides you with the

information you need to perform operations in each

mode. Further details and technical information can be

found in the “Reference” section.

E-1

Contents

General Guide ......................................................................................................... E-4

Timekeeping ............................................................................................................ E-6

Data Bank .............................................................................................................. E-11

World Time ............................................................................................................ E-17

Day Counter .......................................................................................................... E-19

Alarms .................................................................................................................... E-23

Stopwatch .............................................................................................................. E-28

Countdown Timer ................................................................................................. E-30

Reference .............................................................................................................. E-32

Specifications ....................................................................................................... E-35

E-3

To set the target date ............................................................................................ E-20

To set an alarm time ............................................................................................. E-24

To test the alarm ................................................................................................... E-25

To turn an alarm on and off ................................................................................. E-26

To turn the Hourly Time Signal on and off ......................................................... E-27

To use the countdown timer ................................................................................ E-30

To set the countdown start time .......................................................................... E-31

To turn the button operation tone on and off ..................................................... E-32

E-4

General Guide

• Press C to change from mode to mode.

• Pressing L in any mode illuminates the display.

Timekeeping Mode World Time ModeData Bank Mode

Press .

E-5

• If you do not perform any operation for a few minutes while a setting screen (with

flashing digits) is on the display, the watch exits the setting screen automatically.

• If you do not perform any operation for a few minutes in the Alarm Mode, Day

Counter Mode, or Data Bank Mode, the watch reverts to the normal timekeeping

screen automatically.

Countdown

Timer Mode

Alarm Mode Stopwatch ModeDay Counter Mode

E-6

Timekeeping

Use the Timekeeping Mode to set and view the current

time and date.

• Pressing A in the Timekeeping Mode will display the

currently selected Home City.

• Press D to toggle between 12-hour and 24-hour

formats.

• With 12-hour format, times between midnight and noon

are indicated by A (am), while times between noon and

midnight are indicated by P (pm).

• The A and P indicators do not appear when you are

using 24-hour format.

Year

Day of week

Seconds

Month – Day

Hour

PM indicator

Minutes

E-7

To set the time and date

1. While in the Timekeeping Mode, hold down A until the second’s digits flash on the

display, which indicates the setting screen.

2. Press C to move the flashing in the sequence shown below.

DST

Seconds

Month

Day

City code

Minutes

Year

Hour

E-8

3. While the seconds setting is selected (flashing), press D to reset it to 00. If you

press D while the seconds setting is in the range of 30 to 59, the seconds are

reset to 00 and 1 is added to the minutes. If the seconds setting is in the range of

00 to 29, the minutes count is unchanged.

• While the DST* setting is selected (DST on indicator is flashing), press D to

toggle it on (On) and off (OF).

• The DST on/off setting you select for the Timekeeping Mode affects the World

Time Mode.

• While the city code setting is selected, use D and B to scroll through the

available codes until the one you want to use as your home time city is displayed.

• For full information on city codes, see the “City Code Table” at the back of this

manual.

4. While any other setting is selected (flashing), press D to increase it or press B to

decrease it. Holding down D or B scrolls at high speed.

5. Press A to exit the setting screen.

• The day of the week is set in accordance with the date automatically.

• The date can be set within the range of January 1, 2000 to December 31, 2099.

E-9

• The watch’s built-in full automatic calendar makes allowances for different month

lengths and leap years automatically. Once you set the date, there should be no

reason to change it except after replacement of the watch’s battery.

* See “Daylight Saving Time (DST) Setting” (page E-18) for details about the DST

setting.
